Event-Driven Architecture with Aletyx Enterprise Build of Kogito and Drools 10.0.0 in Quarkus

Modern applications thrive on real-time data and responsiveness—needs perfectly addressed by Event-Driven Architecture (EDA). Instead of tightly coupling services, EDA relies on loosely connected components that produce and react to events, thus enabling scalability, resilience, and flexibility in cloud-native environments.

Kogito leverages the power of Drools (rules), jBPM (processes), and DMN (decisions) to provide a next-generation business automation toolkit. When running on Quarkus, a Kubernetes-native Java framework, Kogito services start quickly, use minimal memory, and seamlessly integrate with Apache Kafka out of the box. Below, we explore how Kogito’s rules, decisions, and processes interact through CloudEvents, enabling both message consumption and production without extra glue code.

Out-of-the-Box Kafka and CloudEvents Integration

Kogito natively supports Kafka with minimal configuration. By default, it consumes and produces events following the CloudEvents standard, embedding metadata such as type and source to ensure the correct Kogito component receives each event. This means:

• Rules typically expect type="RulesRequest".
• DMN expects type="DecisionRequest", kogitodmnmodelnamespace, and kogitodmnmodelname.
• Processes match events based on the type specified in their message node definitions.

Even when multiple services share a single Kafka topic, CloudEvents metadata ensures proper routing to the correct engine or workflow node, drastically reducing boilerplate routing logic.

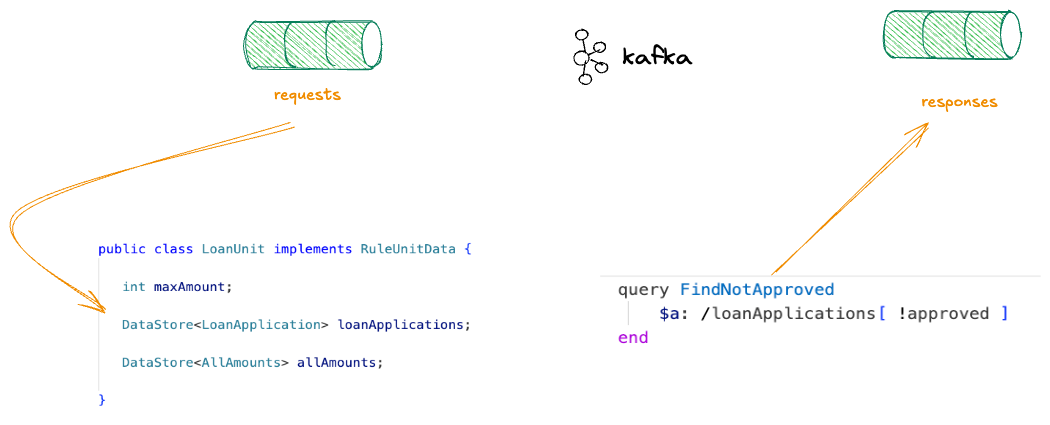

Event-Driven Rules (DRL)

When building event-driven rules, Drools in Kogito continuously listens for relevant events in a specified topic:

1. An event arrives with type="RulesRequest".
2. Kogito inserts the payload as a fact into the Drools session.
3. All matching rules are evaluated (or “fired”).
4. When a rule triggers, new facts can be asserted, and a resulting event can be produced to a Kafka topic.

Event-Driven Decisions (DMN)

For Decision Model and Notation (DMN) use cases, Kogito listens for events with type="DecisionRequest", expecting the namespace (kogitodmnmodelnamespace) and model name (kogitodmnmodelname). Upon receiving such an event:

1. Kogito routes the payload to the correct DMN model based on the namespace and name.
2. The DMN engine evaluates the incoming data against your decision logic.
3. The decision result is either returned synchronously or published as a CloudEvent to another Kafka topic.

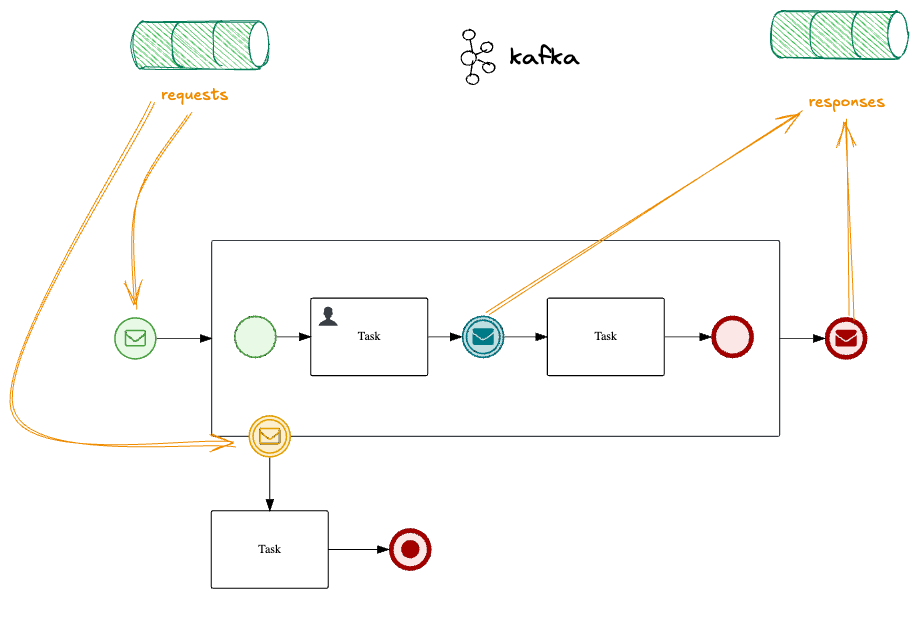

Event-Driven Processes

Kogito’s jBPM-based process engine provides event-driven processes that start or proceed upon receiving a CloudEvent:

1. A message matches the type defined in the message node in your BPMN process.
2. Kogito injects the data into the process context.
3. The process executes its tasks or sub-processes in sequence.
4. At key points, the process can produce new events that trigger actions in other services.

Conclusion

Together, Kogito and Quarkus provide a robust, cloud-native platform for building event-driven services that incorporate rules, decisions, and processes. By leveraging Kafka integration out of the box, you can develop scalable, maintainable, and responsive event-driven applications with minimal boilerplate. Whether you are streaming data for rules evaluation, orchestrating business workflows, or automating decisions, Kogito on Quarkus offers a powerful toolkit to handle events from start to finish.
